All prices incluing 19% VAT plus shipping costs.

shipping costs inside Germany:   6.00 EUR for regular parcel
                                             13.00 EUR if mast poles are purchased

If you have questions about shipping please write to service@tecadi.de
You will get a detailed answer as fast as possible.





Limited amount on stock.
At this time this product is only available on ham fairs and rallies.

mast-segment (used shape)
made from GFK/GRP glassfibre-reinforced-plastic
total length : 1,30m - eff. length: 1,20m
diameter:35mm - wall thickness:2,5mm - green
weight: 1Kg

The item mostly shows traces of usage (scratches) etc. which is not affecting the physical properties.

price: 5.50 EUR / pole
         25.00 EUR / 5-pack  ( 5.00 EUR/unit )

Plate for guy-lines, esspecially made for GRP mast-system. That plate allows mounting of three lines and is to be used inbetween two poles.
laser-cut and made from weatherproof V2A stainless steel.
diameter: 80mm; inner: 30mm; holes: 6mm
thickness: 2,0mm

please use rope/wire clips or hooks!

price: 6.00 EUR
         17.00 EUR  3-pack  (5.66 EUR / unit )


plate TMF

A multifunctional guy-line-plate which goes further and offers the ability to mount accessories like a mobile mount, a PL-socket, a small case or something else.
So you can use a mobile antenna at the same time you carry a yagi or wire antenna on top of the mast.

So there are no limits for your individual ideas.

material: stainless steel V2A,  thickness: 2mm

price: 14.50 EUR





snaphooks Zn,  3-pack

3 HQ-snap-hooks. length 50mm, galvanized and well closing.
Set of 3 for use with one guy-plate.

price: 3.00 EUR / 3-pack  ( 1.00 EUR / unit)


3-pack of hooks as before, but in INOX stainless quality (V2A)
l=50mm, inox, 3-pack for use with 1 plate

price: 6.00 EUR / 3-pack  ( 2.00 EUR / unit )





hamrope KEV Premium

The all-in-one guiding solution. This new product covers the most needed properties for ham-radio use. It gives excellent abrasion-, weather- and UV-resistance and very less elongation. It counts on reliable and established material and uses Kevlar® fibres, a wellknown material for safety products.
hamrope is produced on modern lines here in Europe.

properties:
- compact mantle/core design with 4mm diameter
- excellent abrasion-, UV- and weather resistance
- breaking load ca. 580 daN, through Kevlar core
- very less elongation (comparable to steel-wire)
- special and practical ham-design

The standard design for this product is army-green with white marker. ( New black-based design is coming soon )
Unflashy in the countryside, hamrope is still well visible for people and birds.The maximum spool-length is 500m.

With pride hamrope was part of the Vanuatu 2010 DXpedition equipment.
hamrope® KEV is made in Germany

price: 0.80 EUR / m
        39.00 EUR / 50m spool   (0,78 EUR/m)

Kevlar is a registrated trademark of Dupon

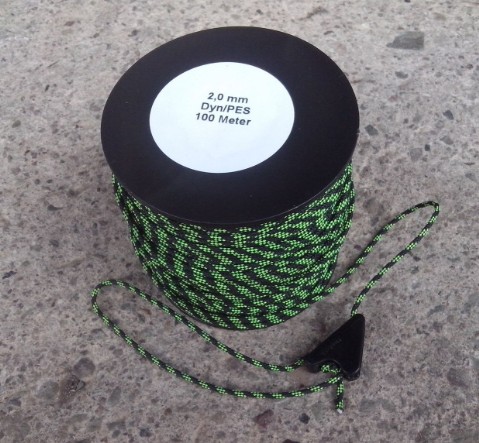

hamrope PES/DYN mantle/core rope, D=2mm, BL: 200daN ( ~200 Kg )

Dyneema®-guy line for use on fieldday events with teleskopic masts ( Spieth, DX-wire, Spiderbeam etc.) or to guide other smaller structures or antennas.
The breaking load (peak) is about 200 DaN with only 2mm diameter and the very less elongation is comparable with steel wire through the properties of the Dyneema® fibre. The flashy design avoids stumbling accidents during fielddays. This product works excellent with Clamcleat® CL-260 ( as shown in the picture ).

hamrope PES/DYN is only available as 100m unit.

price 24.00 EUR / 100 meter spool  ( 0,24 EUR per meter )


Dyneema® is a registered trademark of Royal DSM N.V.

hamrope PES
guy-line for fieldday and base-station use. It is made from quality polyester, excellent UV-resistant and long lasting.
unit is a spool with 100m or 50m length.

hamrope PES 4
Polyester, 4mm diameter
break load: 260 daN(~Kg)
colour: armygreen with red marker


hamrope® PES is made in Germany

price: 26.00 EUR / 100m spool  (0.26 EUR /m )
         15.00 EUR / 50m spool   (0.30 EUR /m )

 reseller requests are welcome


hamrope PKM
guy-line for fieldday and base-station use. It is made from quality polyester, excellent UV-resistant and long lasting.(mantle/core)
The inner red core will show up when mantle is damaged.
unit is a spool with 100m length.


Polyester, 3.5mm diameter
break load: 260 daN(~Kg)
colour: armygreen with red core


hamrope® PKM is made in Germany

price: 26.00 EUR / 100m spool  ( 0.26 EUR / m )

reseller requests are welcome
V2A wire- and rope clamp, simplex-type

clamps hamrope guy-lines and also thinner antenna wire.  (2-4mm)
material: V2A stainless steel

price: 1.00 EUR



V2A wire- and rope clamp, duplex-type

clamps hamrope guy-lines and also thinner antenna wire. (2-4mm)
material: V2A stainless steel

price: 1.50 EUR

thimble V2A stainless

for rope with 3-4mm diameter

price: 0.80 EUR






Clamcleat® CL260 - pack of 10
self gripping rope clamp, UV-resistant, very strong.
Tested under extreme arctic conditions
Suitable for rope diameters from 2 to 4mm.

material: Nylon, color: army-green or black, comes in a pack of 10

price: 7.50 EUR / 10-pack ( 0.75 EUR / unit )





Clamcleat® CL276
self gripping rope clamp, UV-resistant, very strong.
Tested under extreme arctic conditions
Suitable for rope diameters from 3 to 6mm.

material: Nylon, color: black

price: 1.50 EUR


3 ground pins, used

simple ground-pins, Set of 3, used from the former east german army
made of minted steel.
Length: abt. 24cm

price: 3.00 EUR / 3-pack (1.00 EUR / unit)



spiral screw stake

multi-purpose spiral screw stake to be wind into the ground for general use
lenghth 40cm, material is chrome plated steel.


price:  5.00 EUR
         13.00 EUR / 3-pack  (4.33 EUR/unit)
